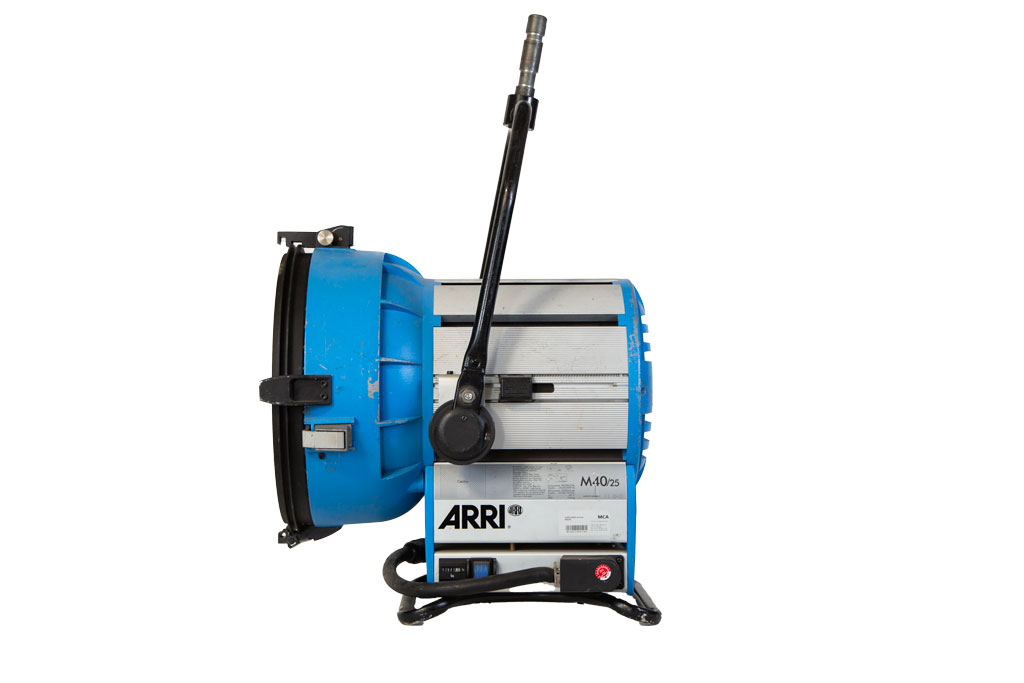

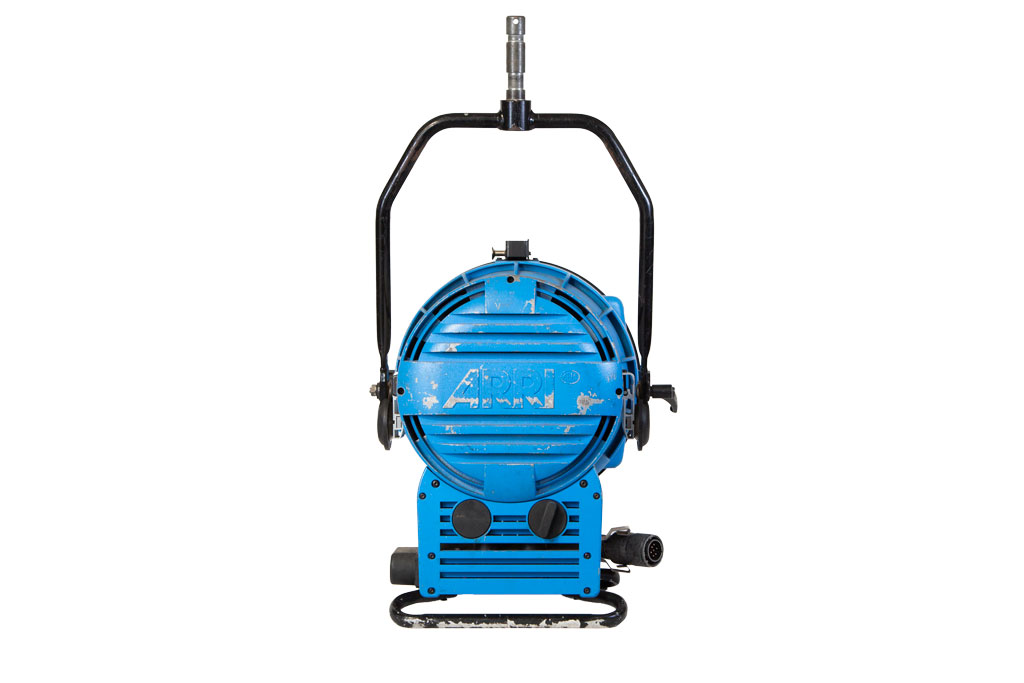

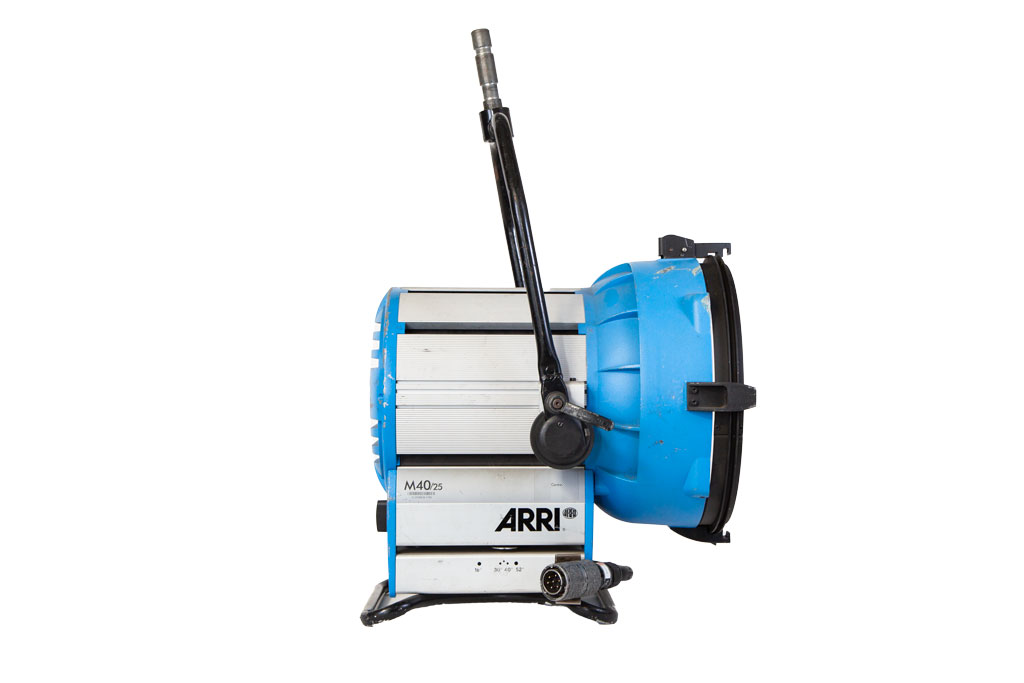

Arri M40 – High-Performance 4K HMI Light

The Arri M40 is a powerful 4,000W HMI daylight fixture that is part of Arri’s renowned M-Series, combining the benefits of PAR and Fresnel lighting into a single, efficient unit. Thanks to Arri’s MAX Technology, the M40 eliminates the need for traditional spread lenses, delivering an exceptionally even light field while maintaining high output and flexibility. The fixture’s rugged design and weather-resistant construction make it an industry standard for professional film, television, and commercial productions.

Power & Performance

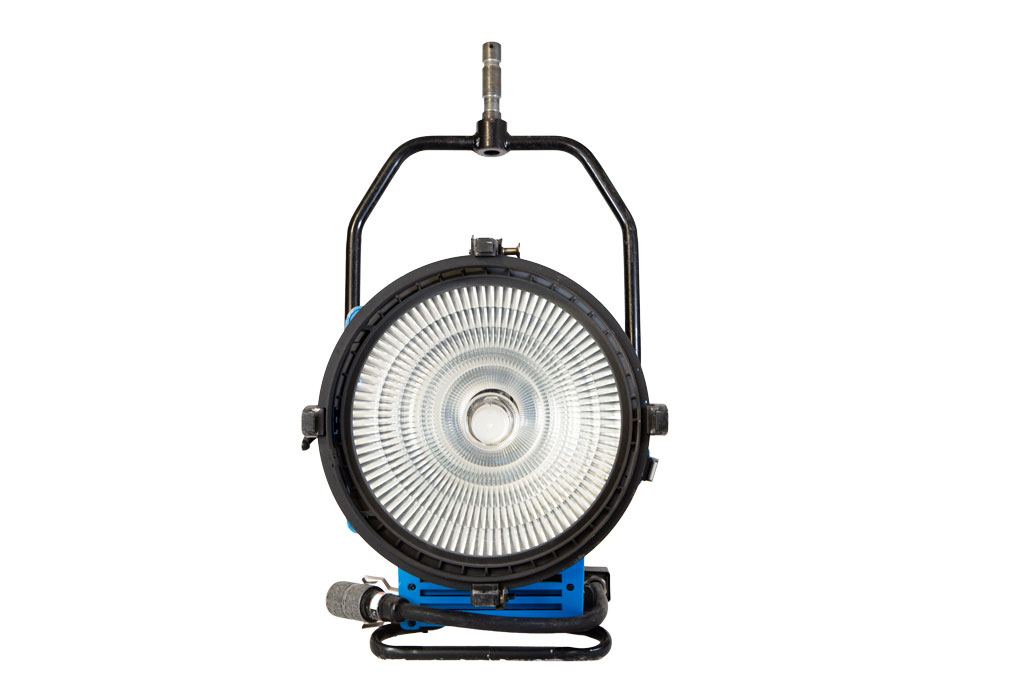

The M40 delivers an impressive light output with excellent beam control. It can be focused from 18° (spot) to 52° (flood), allowing for precise illumination without the need for additional lenses. Its highly efficient reflector system ensures maximum brightness with optimized energy use, making it ideal for both studio setups and on-location shoots where powerful daylight sources are required.

Light Shaping Options

The Arri M40 can be customized with various light shaping accessories to fit different production needs:

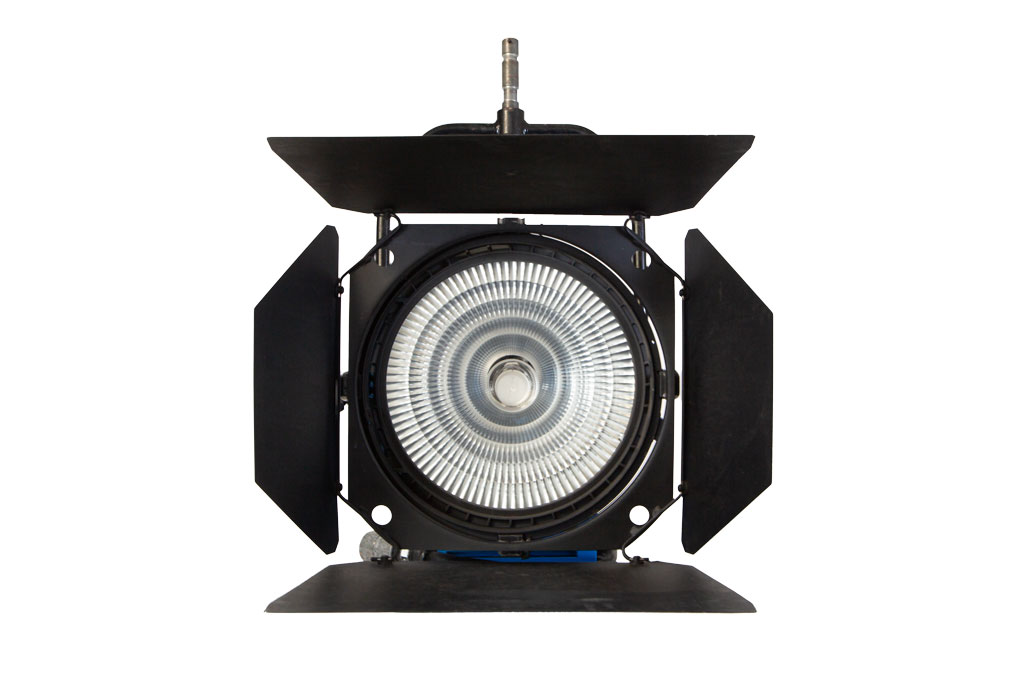

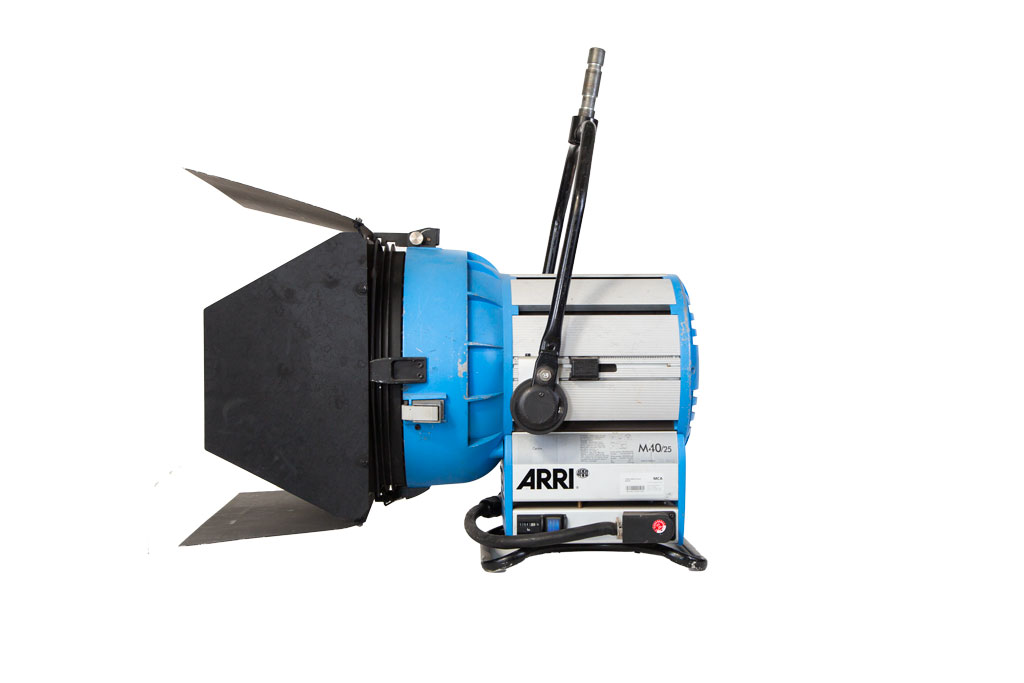

• Barndoors: Allow precise shaping of the beam, controlling spill and defining the spread.
• Softboxes & Diffusers: Transform the M40 into a large, soft light source for beauty shots and natural-looking illumination.
• Chimera Lightbanks: Ideal for creating soft, even lighting while maintaining high efficiency.
• Scrims & Nets: Reduce intensity without altering color temperature, providing subtle adjustments to exposure.
• Reflectors & Bounces: Modify and direct the light for more creative control on set.

Technical Specifications

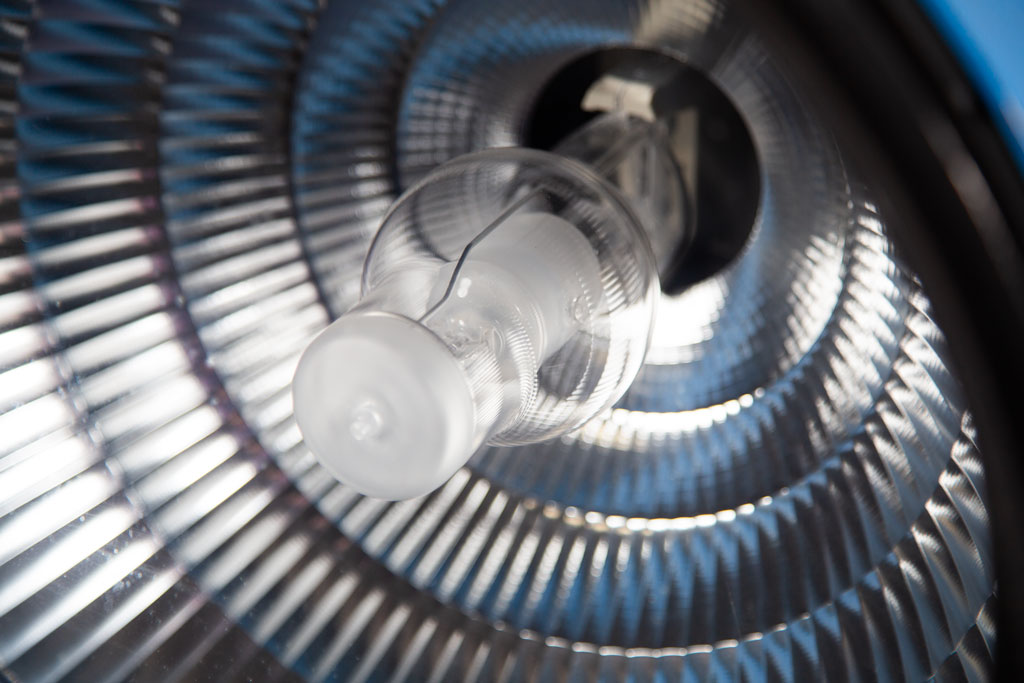

• Lamp Type: 4,000W HMI SE
• Beam Angle: 18° – 52° (Spot to Flood)
• Color Temperature: 6000K
• Power Supply: 4,000W Electronic or High-Speed Ballast (with Active Line Filter for stable output)
• Dimming Range: 50% – 100% (with compatible ballast)
• IP Rating: IP23 (Weather-resistant for outdoor use)
• Mounting: 28 mm (1 1/8″) Spigot for standard stands and rigs
• Weight: 17.5 kg (Fixture Only)
• Dimensions: 740 x 480 x 580 mm (L x W x H)

Built for Professional Use

The Arri M40 is a go-to fixture for high-end productions thanks to its rugged build, weather resistance, and versatile light quality. It is widely used in feature films, commercials, and television productions, offering consistent daylight output with excellent color accuracy.

Whether you need punchy sunlight simulation or soft, diffused daylight, the M40 is a reliable choice for any demanding production environment.
