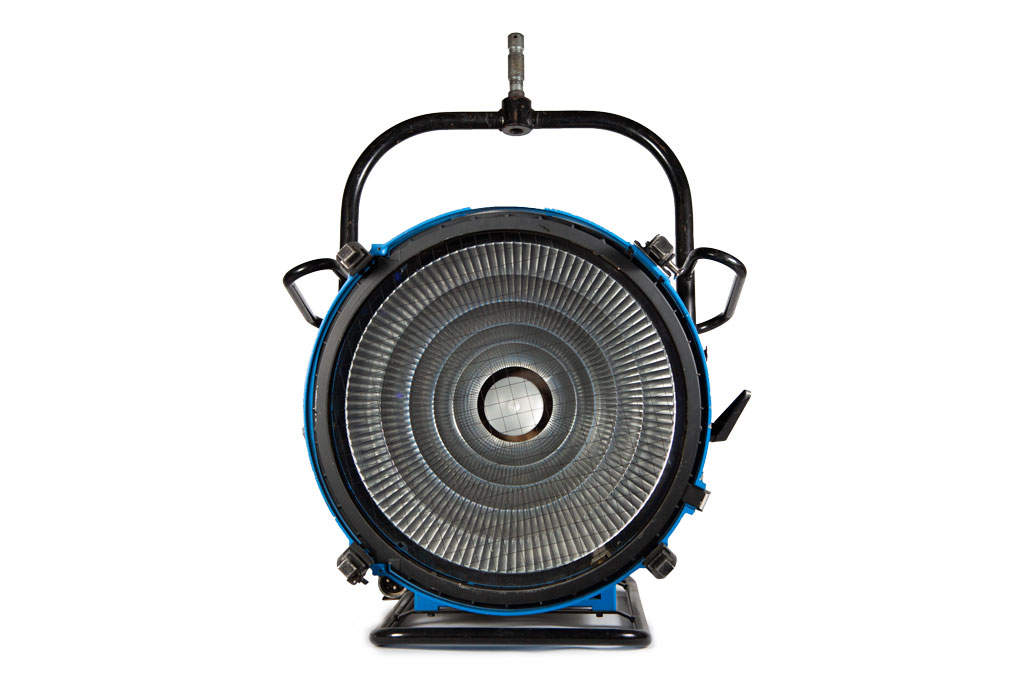

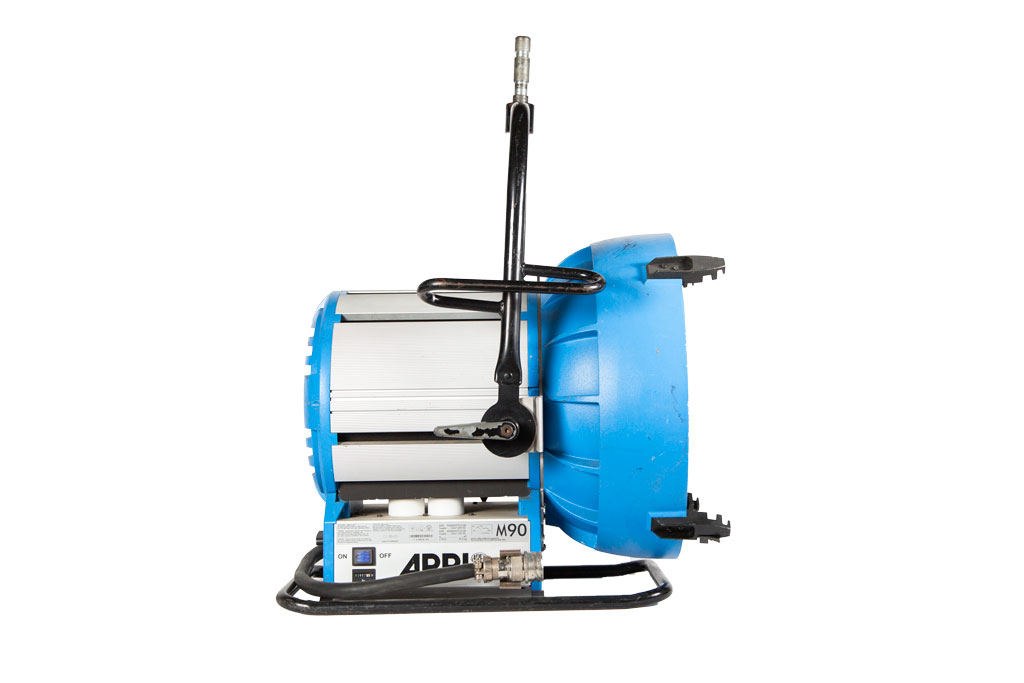

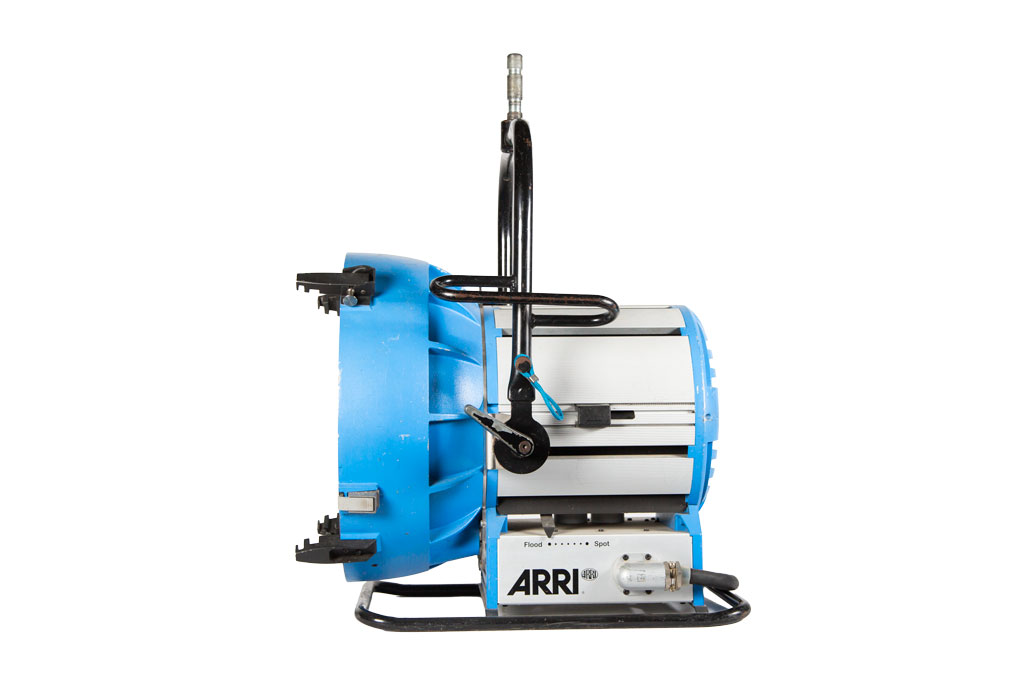

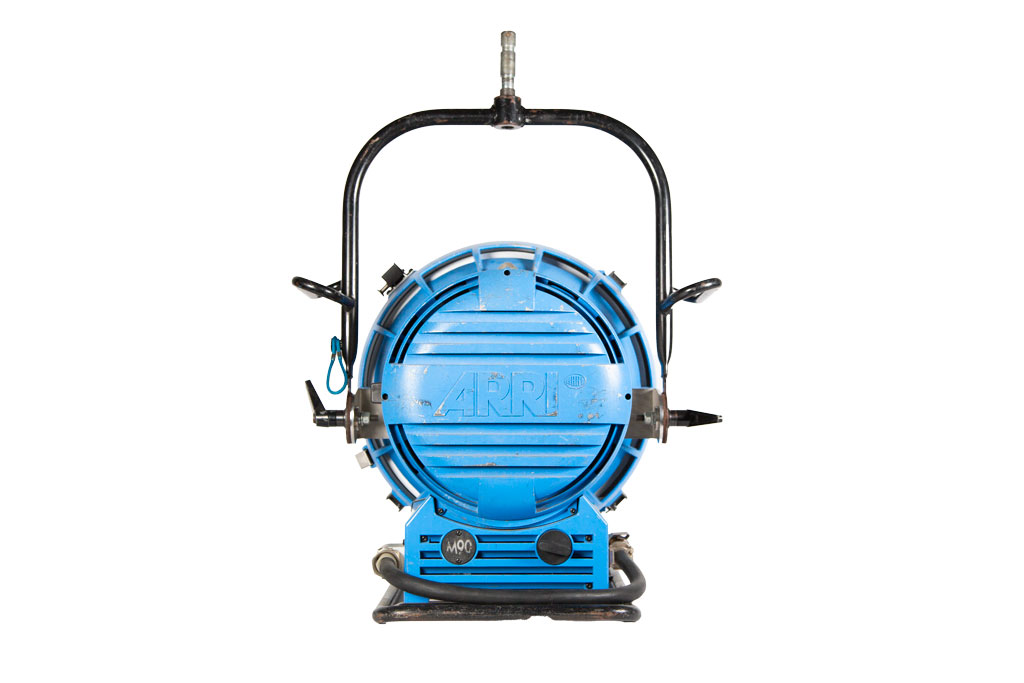

The Arri M90 is a 9,000W HMI daylight fixture, designed to bridge the gap between the M40 (4K) and the Arrimax 18K. As part of Arri’s renowned M-Series, it features MAX Technology, which eliminates the need for additional lenses while delivering an extremely bright, even light field. With a focusable beam from 16° (spot) to 49° (flood), the M90 offers superior efficiency and versatility, making it an essential lighting tool for large-scale film and commercial productions.

The M90 is optimized for 9K HMI lamps, but it can also operate with 6K bulbs, offering additional flexibility depending on power availability. Its weather-resistant design, high-output capability, and exceptional daylight quality make it a go-to choice for demanding outdoor and studio environments.

Power & Performance

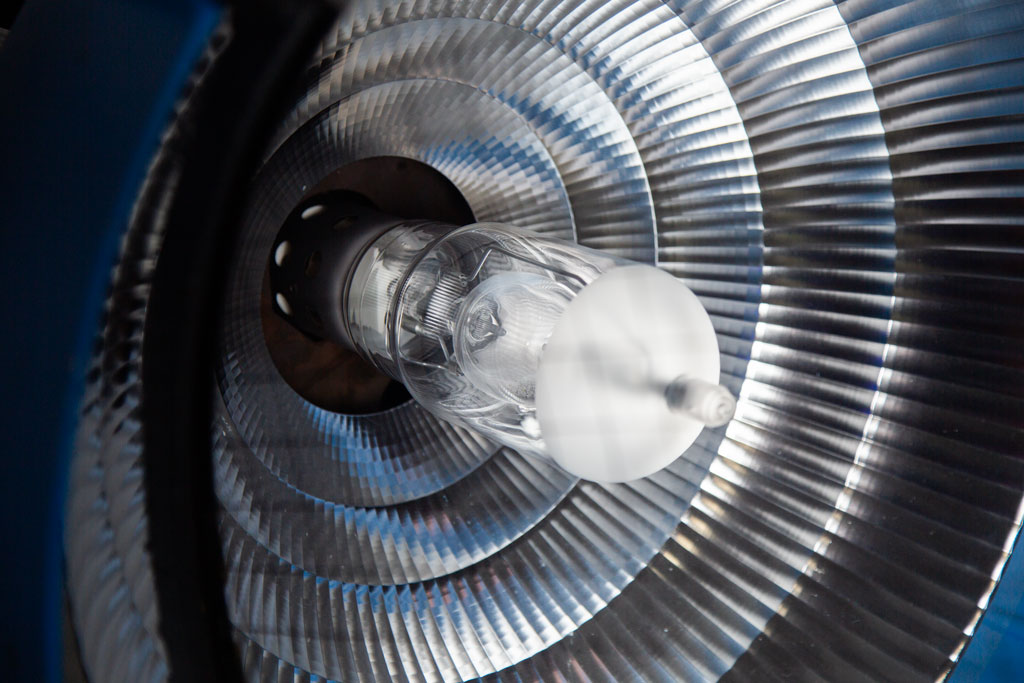

The M90 delivers an output close to a traditional 12K Fresnel, but with a significantly more compact and lightweight housing. It pairs with the EB 6/9K High-Speed Ballast, featuring Active Line Filter (ALF) technology for stable, flicker-free operation, even at high frame rates. The MAX reflector system ensures maximum light efficiency, making the M90 one of the most powerful and efficient daylight sources available.

Light Shaping Options

The Arri M90 is compatible with a range of light control accessories for maximum creative flexibility:

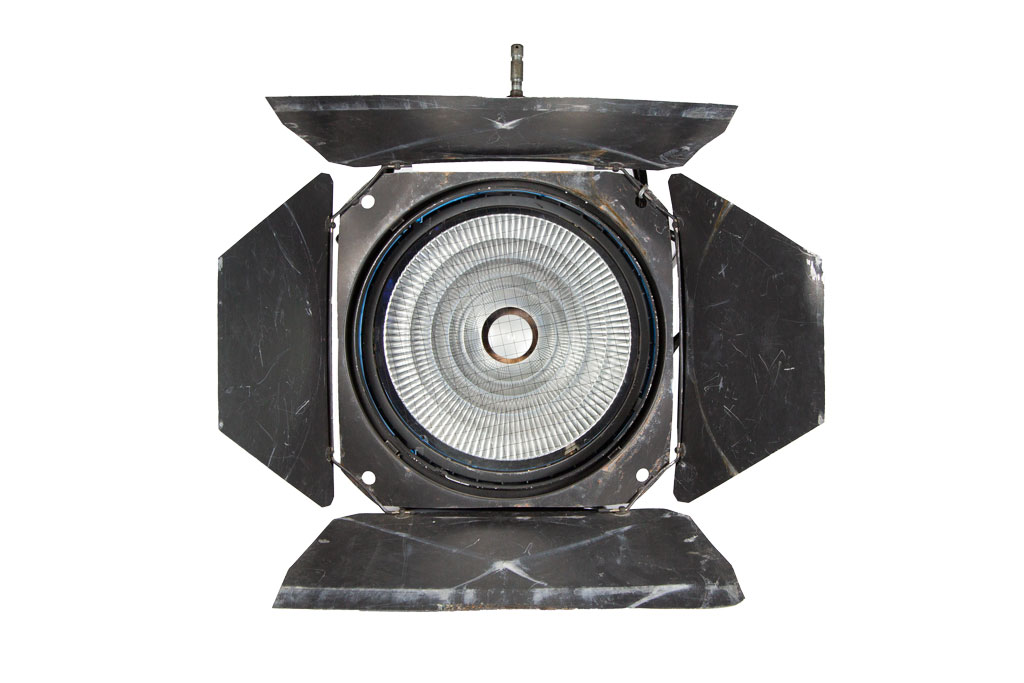

• Barndoors: Shape and direct the light output with precision.
• Softboxes & Diffusers: Convert the M90 into a softer, more diffused light source for cinematic lighting.
• Chimera Lightbanks: Provide controlled, even illumination for high-end production needs.
• Scrims & Nets: Reduce intensity while maintaining color fidelity and beam quality.
• Reflectors & Bounces: Modify and redirect the light for customized setups.

Technical Specifications

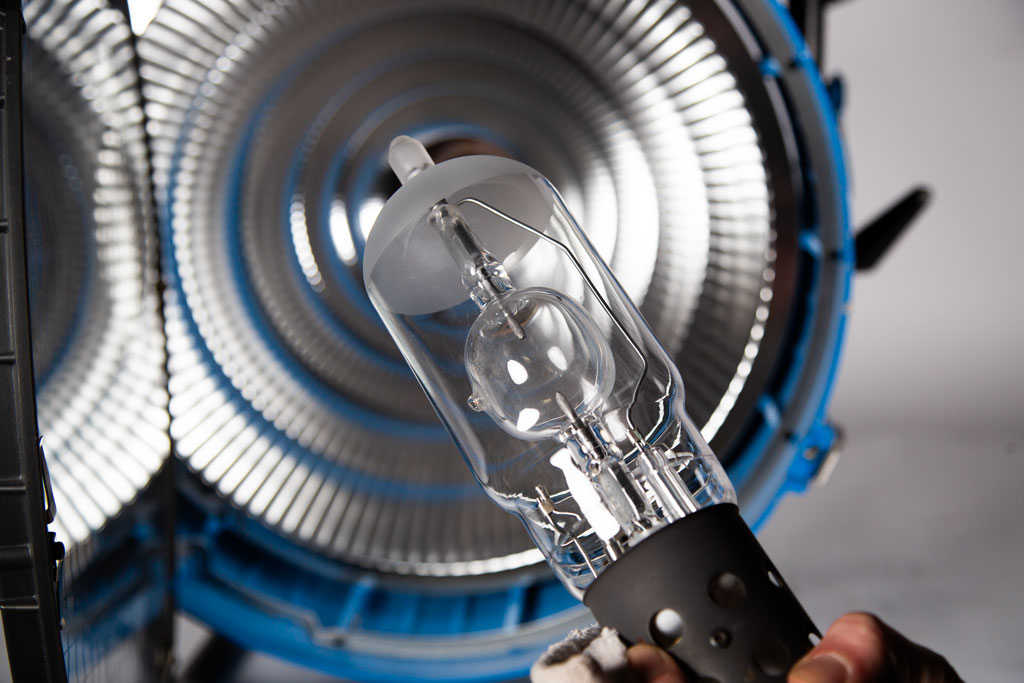

• Lamp Type: 9,000W or 6,000W HMI SE
• Beam Angle: 16° – 49° (Spot to Flood)
• Color Temperature: 6000K

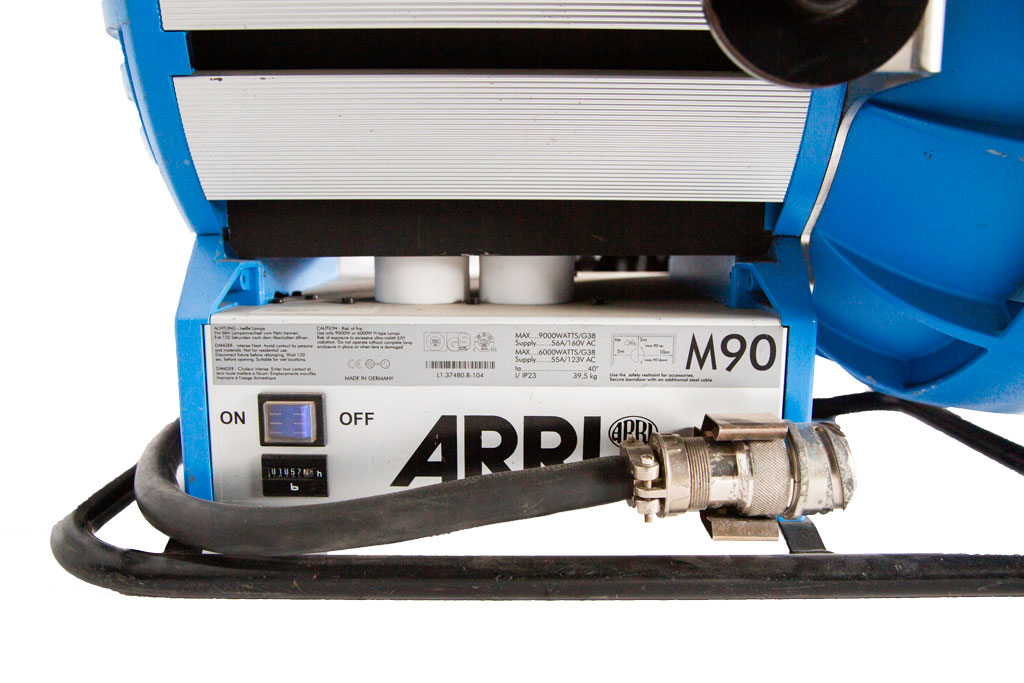

• Power Supply: EB 6/9K Electronic Ballast (High-Speed Compatible)
• Dimming Range: 50% – 100% (with compatible ballast)
• Power Requirement: 9K or 6K ballasts with three-phase power options
• IP Rating: IP23 (Weather-resistant for outdoor use)
• Mounting: 28 mm (1 1/8″) Junior Pin for heavy-duty stands and rigs
• Weight: 39.0 kg (Fixture Only)
• Dimensions: 876 x 617 x 582 mm (L x W x H)

Designed for Large-Scale Productions

The Arri M90 is an industry standard for high-end cinematography, offering unmatched brightness, efficiency, and light control. Whether used for daylight simulation, large-scale location lighting, or controlled studio environments, the M90 provides superior output with maximum flexibility. Its lensless MAX Technology, combined with flicker-free electronic ballasts, ensures consistent performance, even for high-speed cinematography and large-format productions.

Available for rental – contact us to book or for custom lighting package deals!
