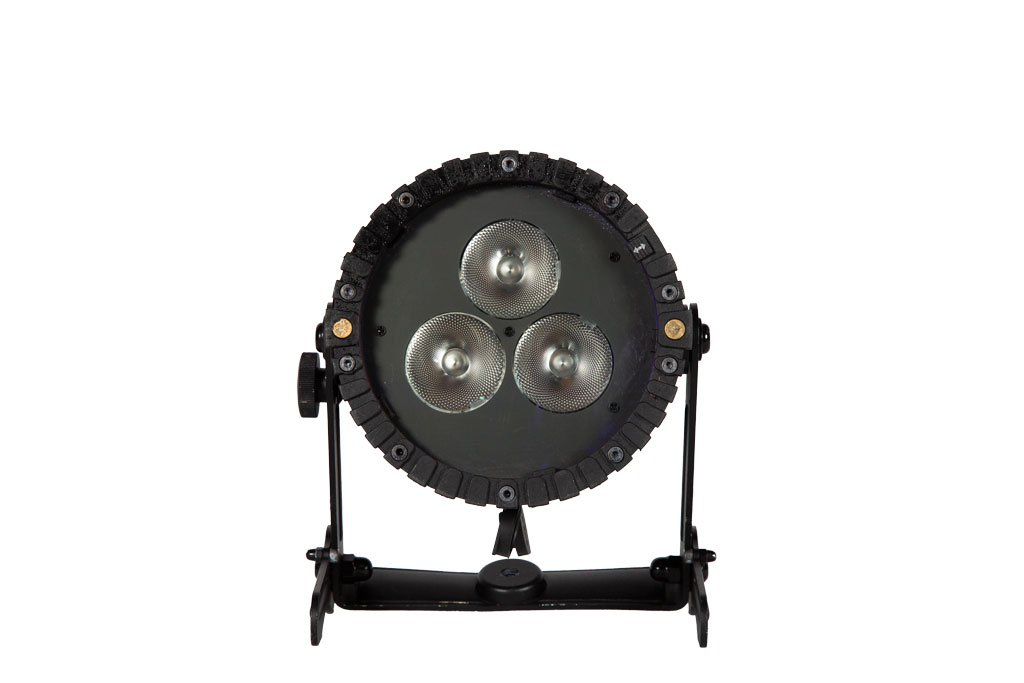

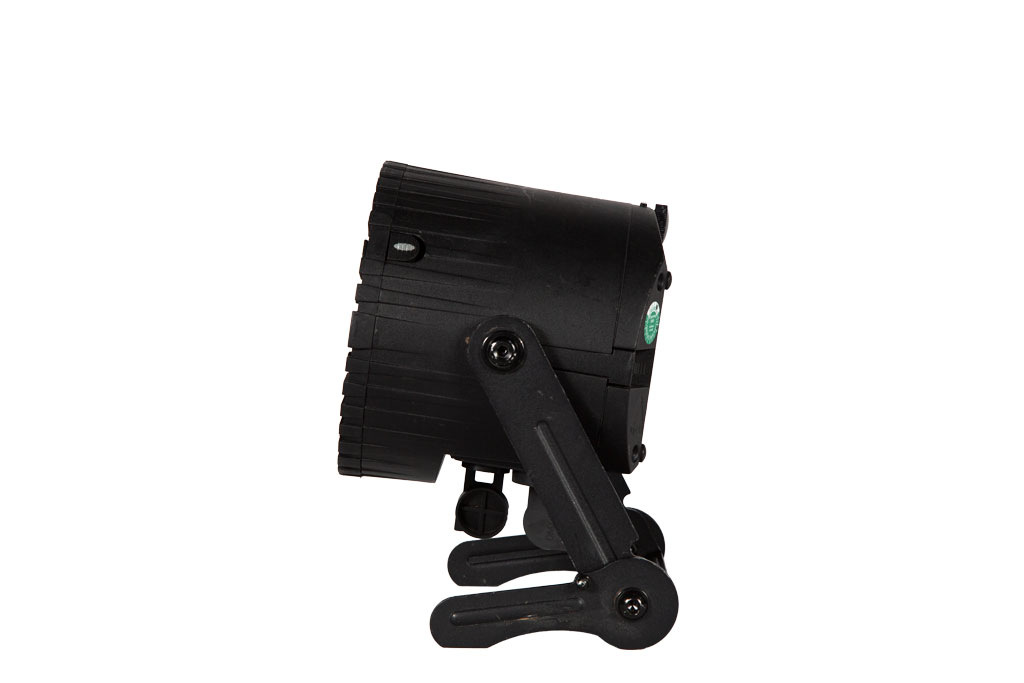

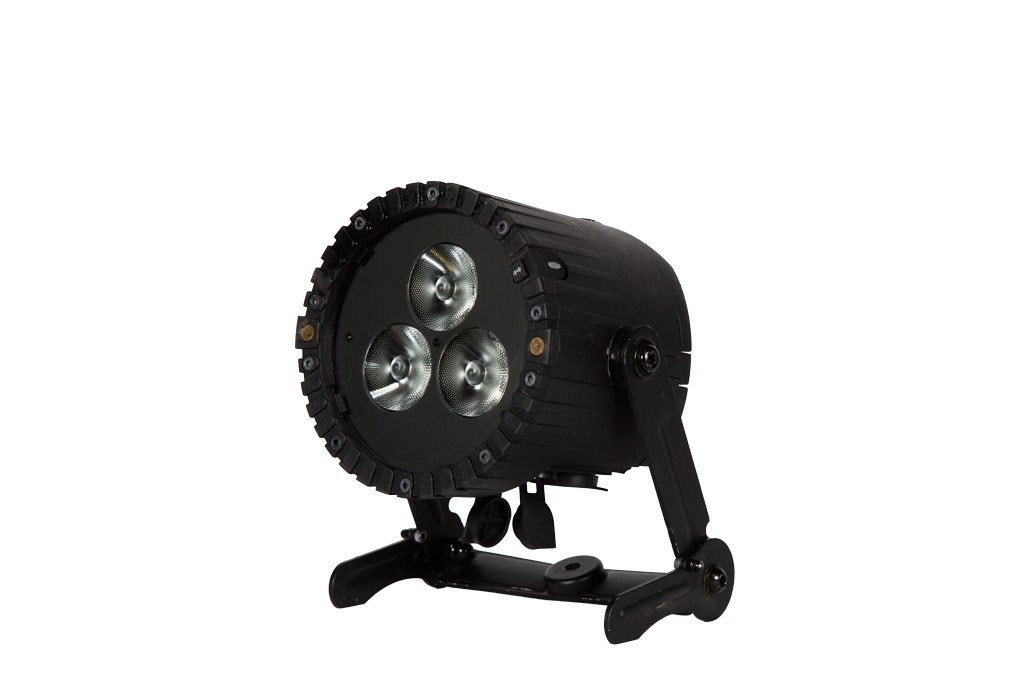

The Astera AX5 TriplePAR is a high-performance, battery-powered LED PAR designed for film, television, live events, and architectural lighting. It combines exceptional brightness, full wireless control, and versatile mounting options, making it a must-have lighting fixture for professionals who need flexibility and efficiency in any environment.

The AX5 is a 3-in-1 lighting solution, functioning as a wireless uplight, traditional PAR, or a stage spotlight, making it one of the most versatile fixtures in the Astera lineup.

Power & Performance

Featuring RGBWA (Red, Green, Blue, White, Amber) LEDs, the AX5 offers accurate color mixing, deep saturation, and adjustable white tones from 3,200K to 6,500K. With a high CRI of 92, it ensures natural skin tones and true-to-life colors, making it ideal for film, broadcast, and event lighting.

The AX5 delivers the output of a 45W LED engine, comparable to a 150W traditional PAR, while maintaining low power consumption. Its built-in lithium-ion battery provides up to 20 hours of wireless operation, making it perfect for on-location shoots, concerts, and event lighting without power access.

Light Shaping Options

The AX5 supports a range of light-modifying accessories for optimal beam control and customization:

• 13° Standard Beam Angle – Ideal for focused lighting.
• Flood Filters (32° & 46°): Broaden the beam for soft, even illumination.
• Barndoors: Shape and direct the light with precision.
• Diffusers & Softening Accessories: Enhance light spread for a natural glow.
• Gels & Color Filters: Further customize the light’s effect.

Wireless & Remote Control

The AX5 is fully wireless, supporting multiple control options, including:

• AsteraApp (Bluetooth Control): Intuitive app-based control with presets.
• CRMX & Wireless DMX: Seamlessly integrates into professional lighting systems.

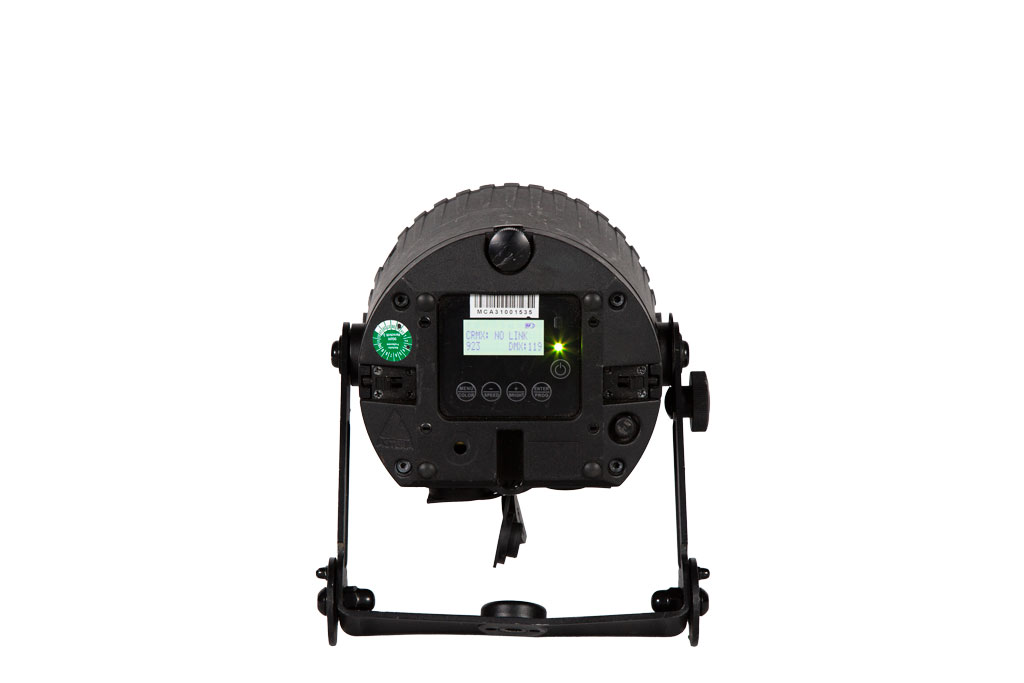

• Onboard Display: Direct control without external devices.
• Wired DMX Compatibility: For traditional lighting console operation.

Technical Specifications

• Power Output: 45W RGBWA LED
• Color Temperature: 3,200K – 6,500K (Tunable White)
• CRI: 92 (High Color Accuracy)
• Beam Angle: 13° (Standard) / 32° & 46° with Filters
• Dimming: 0-100% (Flicker-Free, Smooth)
• Battery Life: Up to 20 hours (Rechargeable, Replaceable)
• Control Options: Onboard, DMX/RDM, CRMX, Bluetooth, AsteraApp
• IP Rating: IP65 (Weatherproof for Indoor/Outdoor Use)
• Mounting: Adjustable Yoke, Baby Pin, Magnetic Mounting Options
• Weight: 3.4 kg
• Dimensions: 144 x 202 mm (D x H)

A Versatile, Battery-Powered LED PAR

The Astera AX5 is an industry-standard solution for film, events, and stage lighting, offering unmatched portability, powerful output, and flexible control options. Whether used as an uplight, stage PAR, or event fixture, the AX5 delivers professional-grade performance in a compact, wireless design.

Available for rental – contact us to book or for custom lighting package deals!
